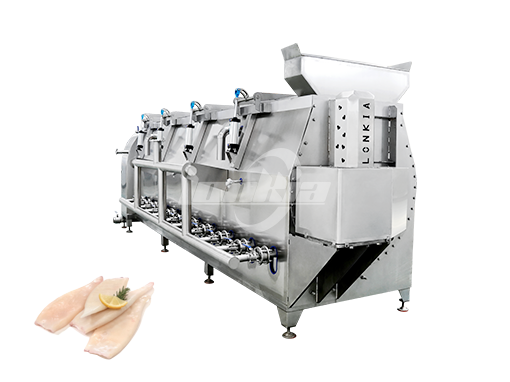

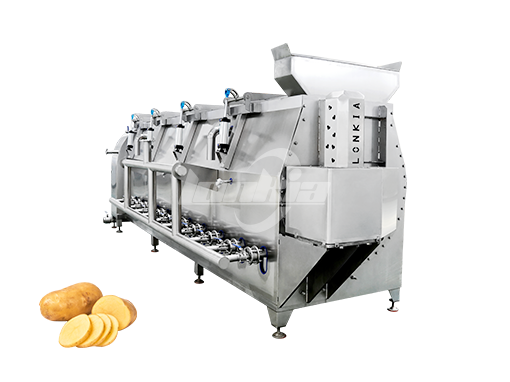

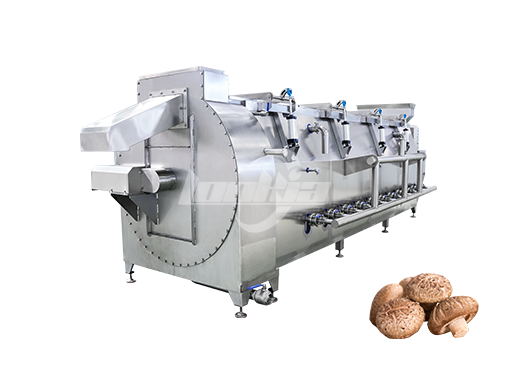

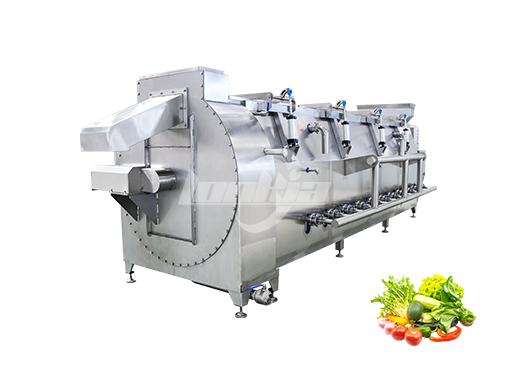

Spiral Blanching Machine

Spiral Blanching Machine

Spiral Blanching Machine

Spiral Blanching Machine





Spiral Blanching Machine

Lonkia spiral blanching machine offers energy-efficient and compact blanching for vegetables like potatoes, carrots, and green beans. Ideal for continuous processing lines.

Spiral Structure for Gentle & Even Blanching
Compact Design – Saves Space
Adjustable Temperature & Time
Easy Cleaning & Maintenance
Suitable for Potatoes, Carrots, Beans, etc.

Introduction

Utilizing a spiral conveyor system, this blanching machine ensures even and consistent exposure to hot water or steam, effectively preparing products for further processing such as freezing or drying. Its space-saving spiral design enables continuous, high-capacity operation with uniform heating and gentle handling.

Technical Specifications

Model	Size	Weight	Motor Power	Mesh Belt Width	Capacity
LKQP-300	300012501300mm	500kg	3.6kw	800mm	400-500kg/h
LKPT-400	400012501300mm	600kg	4.1kw	800mm	600-800kg/h
LKPT-500	500012501300mm	700kg	5.1kw	800mm	1200-1500kg/h
LKPT-600	600012501300mm	800kg	6.5kw	800mm	1500-2000kg/h

Note: Technical specifications may change without notice due to ongoing technological advancements.

Applications

Asparagus
Sliced Fruit
Potatoes
Squid Fillet
cowpea
mushroom
beet
Green peas

Product Gallery

 

Key Features

Uniform Blanching The spiral rotation feeding method, combined with specially designed paddles, ensures even heating of the material, resulting in superior blanching performance.
Efficient Operation With a processing capacity of 500 to 4000 kg/h, it meets the demands of large-scale production.
Automated Control System Automatic feeding and discharging, adjustable temperature and speed, with blanching time adjustable from 1 to 10 minutes and steam temperature controllable between 90-110°C.
Energy Efficiency Double-layer insulation reduces heat loss, and the steam condensate can be recycled, reducing water consumption.
