Efficient quick freezing is essential to preserve freshness, extend shelf life, and maintain optimal taste and color of ingredients such as meat, poultry, seafood, fruits, vegetables, and prepared foods.
Among various freezing equipment, tunnel freezers and spiral freezers stand out as market leaders due to their exceptional performance.
So, how should your factory choose between them? Let’s compare.
1. Working Principle & Structure

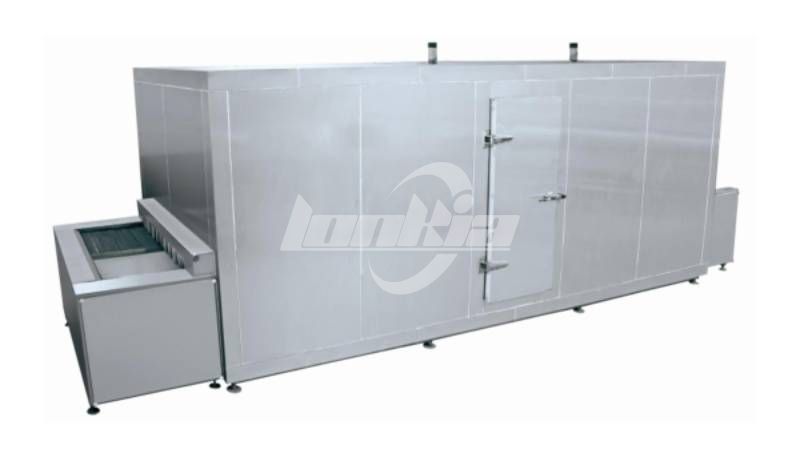

Tunnel Freezer
- Structure: Straight, enclosed passage with linear conveyor belts (mesh or chain).
- Cold Air Circulation: High-speed, low-temperature air (-35°C to -50°C) blown across product surface.
- Freezing Process: Products move at constant speed through cold air for rapid freezing.
Spiral Freezer
- Structure: Vertical stacking spiral with flexible mesh conveyor around central drum.
- Cold Air Circulation: Low-temperature air circulating vertically or horizontally in spiral stack.
- Freezing Process: Longer residence time, ensuring deep, uniform freezing.
2. Core Comparison: Tunnel vs. Spiral
| Feature | Tunnel Freezer | Spiral Freezer | Scenario Analysis |
|---|---|---|---|
| Space Occupancy | Long & narrow | Tall but compact | Spiral wins for limited floor space |
| Production Capacity | Very high throughput | Medium-to-high | Tunnel best for ultra-high-speed mass production |
| Product Flexibility | Broad, but airflow-sensitive | Very wide (varied sizes, packaging) | Spiral handles irregular/fragile items better |
| Freezing Uniformity | Depends on airflow design | Excellent & consistent | Spiral superior for thick/large items |
| Freezing Speed | Very fast | Fast, but slower than tunnel | Tunnel ideal for ultra-rapid IQF freezing |
| Initial Cost | Lower | Higher | Tunnel budget-friendly |
| Energy Use | Potentially higher per unit | More efficient long-term | Spiral offers energy savings |
| Automation | Easy integration | Good but needs adjustments | Tunnel integrates more smoothly |
| Maintenance | Simpler, accessible | More complex | Tunnel easier to service |
| Best for | IQF shrimp, veggies, dumplings, noodles | Ready meals, trayed meats, frozen dough, large fish blocks, ice cream | - |
3. Key Questions Before Choosing
- What is your target production capacity?
- What are your factory space constraints?
- What types of products & packaging will you freeze?
- Do you need extreme freezing speed or deep, uniform freezing?
- What is your budget (initial vs. long-term costs)?
- How important is automation integration?
- Do you require future scalability?
4. Conclusion: No “Best” – Only the “Best Fit”
Choose a Tunnel Freezer if:
- You have ample floor space.
- You need maximum throughput for uniform products.
- Initial budget is limited.
- You require ultra-fast freezing.
Choose a Spiral Freezer if:
- Floor space is limited but vertical height available.
- You process varied, fragile, or packaged products.
- Uniformity and deep freezing are critical.
- Energy efficiency is a long-term priority.
Make the Smart Choice
Both tunnel and spiral freezers ensure efficient operation in modern food processing.
The right choice depends on your factory’s space, products, budget, and production goals.
