Continuous Tunnel Freezer for Seafood and Fish Processing

In modern seafood and fish processing, maintaining freshness, quality, and safety is essential for global distribution. A continuous tunnel freezer plays a crucial role in ensuring that seafood products retain their natural texture, flavor, and nutritional value during freezing. Designed for high-volume production, tunnel freezers offer rapid, efficient, and uniform freezing for a wide variety of seafood products.

This article explains how a continuous tunnel freezer works, its benefits, applications, technical features, and how to choose the right model for your production facility.

What Is a Continuous Tunnel Freezer?

A continuous tunnel freezer is an industrial freezing system used to freeze products rapidly as they move along a conveyor belt through a temperature-controlled tunnel. Unlike traditional static freezing methods, the tunnel freezer ensures maximum efficiency, faster production, and consistent freezing results—ideal for large-scale seafood and fish processing plants.

How a Continuous Tunnel Freezer Works

A tunnel freezer operates in a linear workflow, allowing continuous feeding, freezing, and discharge of seafood products. The process includes:

1. Continuous Feeding System

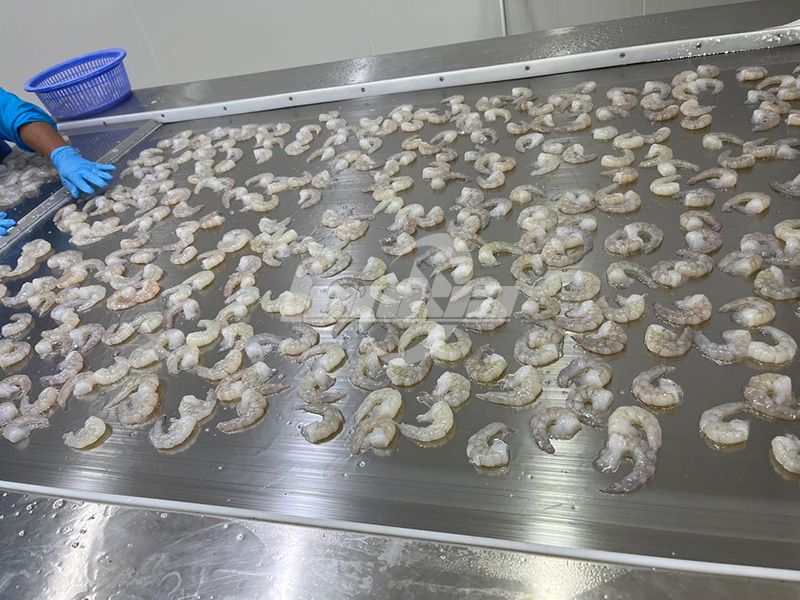

Seafood is evenly spread on the stainless-steel conveyor using manual or automatic distribution systems. This ensures uniform airflow and consistent freezing performance.

2. Rapid Airflow Freezing

High-velocity cold air circulates inside the tunnel, quickly removing heat from seafood products.

Advantages of rapid airflow freezing:

• Minimizes crystal formation
• Preserves meat texture and cell structure
• Prevents dehydration and shrinkage
• Ensures uniform freezing thickness

3. Low Temperature Zones

Products pass through multiple freezing zones, where the temperature typically ranges from –30°C to –45°C depending on product type and size.

4. Continuous Discharge

Once frozen to the core temperature required (usually –18°C), seafood exits the tunnel and is ready for packaging or downstream processing.

The fully continuous design allows for higher throughput, stable product quality, and reduced operational labor.

Applications in Seafood and Fish Processing

Continuous tunnel freezers are widely used in processing lines for:

Fish

• Salmon
• Tilapia
• Cod
• Mackerel
• Tuna

Shellfish

• Shrimp
• Prawns
• Lobster
• Crab
• Scallops

Processed Seafood Products

• Fish fillets
• Breaded fish sticks
• Shrimp meat
• Cooked seafood
• Pre-seasoned fish portions

Whether raw, precooked, or marinated, tunnel freezers help maintain freshness and extend shelf life during long-distance distribution.

Key Features of a Continuous Tunnel Freezer

Industrial tunnel freezers come with advanced systems designed to ensure stable performance in demanding seafood environments.

1. High Freezing Efficiency

• High-speed axial fans
• Optimized cold air circulation
• Reduced freezing time
• Strong heat exchange performance

2. Adjustable Conveyor Speed

Allows processors to control freezing time based on product thickness, weight, and moisture levels.

3. Stable and Uniform Temperature

Multiple temperature zones and intelligent sensors ensure consistent freezing throughout the tunnel.

4. Hygienic & Food-Grade Construction

• SUS304 stainless steel body
• Easy-to-clean surfaces
• CIP (Clean-in-place) system options

This is especially important for seafood, which is highly sensitive to bacteria contamination.

5. Energy-Efficient Design

Modern tunnel freezers use:

• High-density insulation panels
• Frequency-controlled fans
• Efficient compressors

These features significantly reduce operating costs, making the system more profitable for long-term production.

6. Wide Capacity Range

Tunnel freezers support various production capacities:

This flexibility makes them suitable for both medium-sized plants and large commercial seafood factories.

Benefits of Using a Continuous Tunnel Freezer in Seafood Processing

1. Faster Freezing, Higher Quality

Quick freezing prevents cell damage and maintains the natural appearance and texture of seafood.

2. Extended Shelf Life

Seafood frozen below –18°C can be stored for long periods without losing flavor or nutrition.

3. Fully Automated and Continuous Operation

Reduces labor requirements and improves production efficiency.

4. Lower Product Dehydration Loss

The high-speed freezing process reduces dehydration to less than 1%, ensuring higher yield.

5. Consistent Freezing Results

Perfect for standardized, large-volume export production.

6. Reduced Processing Costs

Energy-saving components and continuous workflow lower cost per kilogram.

How to Choose the Right Continuous Tunnel Freezer

When selecting a tunnel freezer for seafood processing, consider the following factors:

1. Production Capacity

Choose a freezer model that matches your processing output.
Under-sized equipment reduces efficiency, while over-sized equipment wastes energy.

2. Types of Seafood Products

Different products require different freezing times:

• Fillets freeze faster
• Shellfish need stronger airflow
• Breaded products require gentle belt handling

3. Available Space

Tunnel freezers require sufficient floor space and access for cleaning and maintenance.

4. Energy Consumption

Energy-efficient systems may cost more initially but reduce long-term operating costs.

5. Belt Type

Choose based on product characteristics:

• Mesh belt: small fish, shrimp
• PU belt: delicate fillets
• Stainless-steel belt: heavy products

6. Manufacturer Support

A reliable supplier should offer:

• Installation assistance
• Technical support
• Spare parts availability
• Customizable designs

Integrating the Tunnel Freezer into a Complete Seafood Processing Line

A continuous tunnel freezer is often combined with other equipment to create a full processing line, including:

• Washing and grading machines
• Cutting and filleting equipment
• Glazing systems
• IQF pre-freezing machines
• Packaging machines
• Cold storage facilities

Automation between stages ensures smoother workflow and lower labor costs.

Conclusion

A continuous tunnel freezer is a vital component in modern seafood and fish processing. With fast freezing speed, consistent performance, and full automation, it ensures top-quality frozen seafood ready for global markets. Whether you're processing shrimp, fish fillets, or value-added seafood products, a tunnel freezer delivers efficiency, food safety, and long-term profitability.
